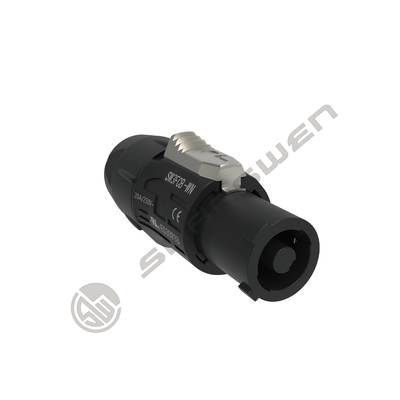

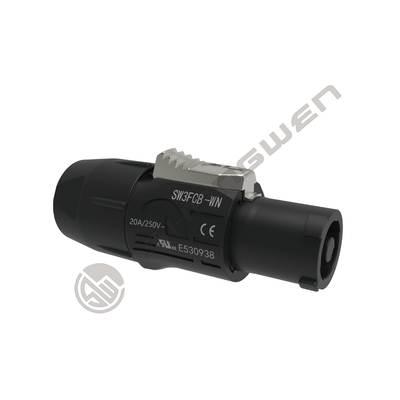

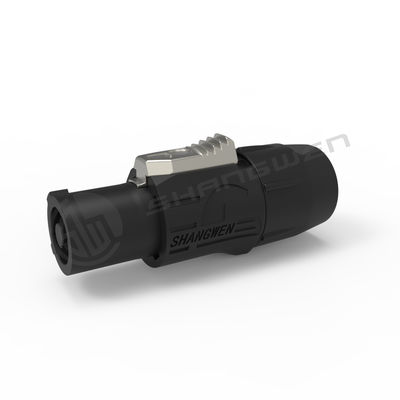

Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display

  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
  • Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display
محل منبع گوانگدونگ ، چین
نام تجاری SHANGWEN
شماره مدل SW3FCB-WN
مقدار حداقل تعداد سفارش 10 قطعه
قیمت $1.20-1.50 / piece

برای نمونه ها و کوپن های رایگان با من تماس بگیرید.

WhatsApp:0086 18588475571

ویچت: 0086 18588475571

اسکایپ: sales10@aixton.com

اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.

x
جزئیات محصول
سطح IP IP65 نوع کانکتور نمایشگر LED
کاربرد قدرت جنس مرد
مواد مسکن آلیاژ روی الکترونیک صنعتی لوازم
برجسته کردن

Lockable Power Adaptor Connector,AC Power Adaptor Connector,Triple Core Power Adaptor Connector

,

AC Power Adaptor Connector

,

Triple Core Power Adaptor Connector
پیام بگذارید
توضیحات محصول
Products Description
Power connector series-female powercon（input port）
This series is widely used in outdoor rental LED display power connection.
The plastic part is made of PA6 material, with stable electrical performance, good pressure resistance, high temperature
resistance, explosion resistance and corrosion resistance.
The copper needle is made of beryllium copper material imported from the United States and plated with silver, which has strong contact stability and can strengthen the control of temperature rise.
Using rotary locking design, easy to operate, stable and reliable !
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 0

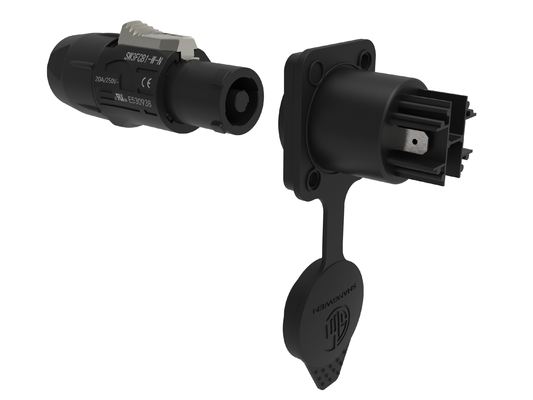

Model : SW3FCB1-W ( outdoor use/black input)
☑Lockable triple core equipment (AC) connectors with contacts for straight, neutral and pre-adapted safety grounding
☑high current capacity, rated at 20A/250V AC
☑Quick and simple locking system, the keys are firm and do not fall off
☑Connection mode:
1. Screw clamping and welding
2. Lock the cable with screws
☑Quick, simple locking system
☑Connect reliably
☑Use different color design to distinguish signal input and output, yellow input, black output
☑Using left and right positioning connection design, can effectively prevent short circuit caused by misplug
☑The inner core is designed to prevent the copper needle from withdrawing from the inner core due to excessive pulling force
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 2
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 4
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 6
1.Electrical parameters
Contacts NO.
2+PE
Rated current
20A
Rated voltage
250V AC
Contact resistance
≤5mΩ
Dielectric strength
4000V DC
Insulation resistance
＞1000MΩ
2.Mechanical parameters
Service life
＞1000 times
Power line
2.5mm²(8mm - 12mm)
Wire stripping length
7-8mm
Type of teminals
Screw type clamping units solder termination
3.Material and environmental parameters
Shell
PA
Contacts
Cu alloy
Contact surface
Ag
Flame-retardant grade
UL94-V0
Protection grade
IP65
Temperature range
-30°C to +80°C
4.Size reference (unit /mm)
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 8
5.Installation reference drawing
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 10
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 12
Application area
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 14
Company Information
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 16
Patent & Certification
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 18
Exhibition activities
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 20
Packaging reference
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 22
Payment and logistics
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 24
FAQ
Ip65 Outdoor Triple Core Waterproof AC Power Adaptor Lockable Plastic and Alloy Male and Female Connectors for LED Display 26
1.Why do we choose SHANG WEN supply?
A:We promise:All of our products are power regulated.The output voltage and current are true one.all with good quality and competitive price.We assure you timely delivery by keeping 80% standard products inventory and best after-sale service.All have done 100% long time ful-load aging test/ burn-in test before shipment.

2.What is the applicable range of this product?
A:Suitable for fixed & rental installation display screen, stage lighting and sound, security, new energy, medical etc.

3.Can your products pass CE/ROHS certificate?
A:Yes,our products meet the industrial standards,like:CE/UL/RoHS/CCC.

4.Accept sample order ?What is your minimum order quantity?
A:Trial order or sample order is accept,but same cost as bulk.

5.What are the shipping ways you can offer?
A:By air/sea according to customers'requirements.

6.Do your products come with warranty?
A:Yes,we promise 1-3 year warranty according to different model.
