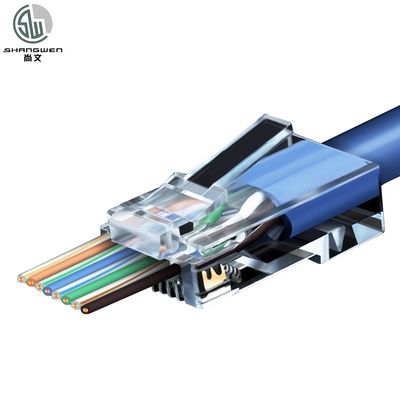

8P8C RJ45 Cat5e Cat6 UTP Jack Connector Adapter for Wall Plate Toolless 90 Degree Internet Network Ethernet Lan Cable
برای نمونه ها و کوپن های رایگان با من تماس بگیرید.
WhatsApp:0086 18588475571
ویچت: 0086 18588475571
اسکایپ: sales10@aixton.com
اگر شما هر گونه نگرانی دارید، ما 24 ساعت کمک آنلاین ارائه می دهیم.
xجزئیات محصول
| کاربرد | برق ، تلفن و شبکه | جنس | مرد، مرد |
|---|---|---|---|
| نوع | RJ45 ، 8p8c UTP | پین | 8p |
| نام | کانکتور RJ45 | کشور مبداء | گوانگدونگ ، چین |
| رنگ | شفاف | وزن | حدود 1.6 گرم در رایانه |
| محافظ | بید | واژگان کلیدی | CAT6/CAT6A/UTP/RJ45 Connector/Plated/Network |
| برجسته کردن | 90 Degree RJ45 Connector Adapter,8P8C RJ45 Connector Adapter,UTP RJ45 Connector Adapter,8P8C RJ45 Connector Adapter,UTP RJ45 Connector Adapter |
||
توضیحات محصول
Products Description

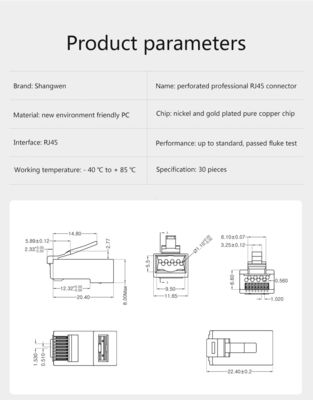

PLUG SPECIFICATIONS | ||
Connector | 50U’’8P8C RJ45 Plug | |
Model | SW-CN-UPG603 | |
Shielding | UTP | |
Color | transparent | |
Electrical Test | 1.Dielectric Withstanding Voltage test 1000V/DC | |
2. Insulation Resistance: >500MΩ | ||
3. Contact Resistance:<20MΩ | ||
Gold Plate Inspection | 1. TYPE II (99% pure gold minimum) | |
2. Grade C+(KNOOP HARDNESS RANGE 130~250) | ||
3. Class 1(50 microinches minimum thickness) | ||
Mechanical | 1. Cable-to-plug tensile strength-20LBs(89N) min. | |
2. Durability:2000 mating cycles. | ||

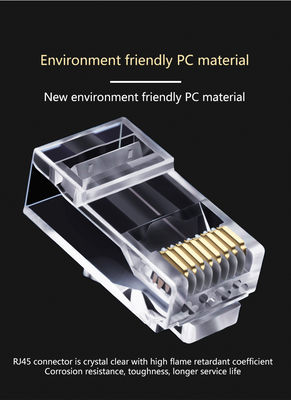

Material & Finish | 1. Housing Material: Polycarbonate(PC.) 94V-2(For UL 1863 DUXR2) | |
2. Contact blade: Phosphor Bronze | ||
a. High strength copper alloy [JIS C5191R-H(PBR-2)]. | ||
b. 100 microinches nickel under plated & Gold selected. | ||
c. Operating Temperature:-40 ℃~+125℃ | ||
Weight | About 1.6g/pcs | |
Advantage | a. Special craft shrapnel design, repeated bending without breaking, better support for repeated fluidity use b.Three-prong widening, thickening and lengthening the chip to ensure full contact between the chip and the core c. Connector pure copper chip, processed by nickel plating and gold plating process, anti-oxidation, no blackening d. Connector's chip 50μm gold-plated, supports 100,000 times of repeated plug-and-plug use e.Connector's chip and wire core are precisely riveted, and the transmission is more stable | |
